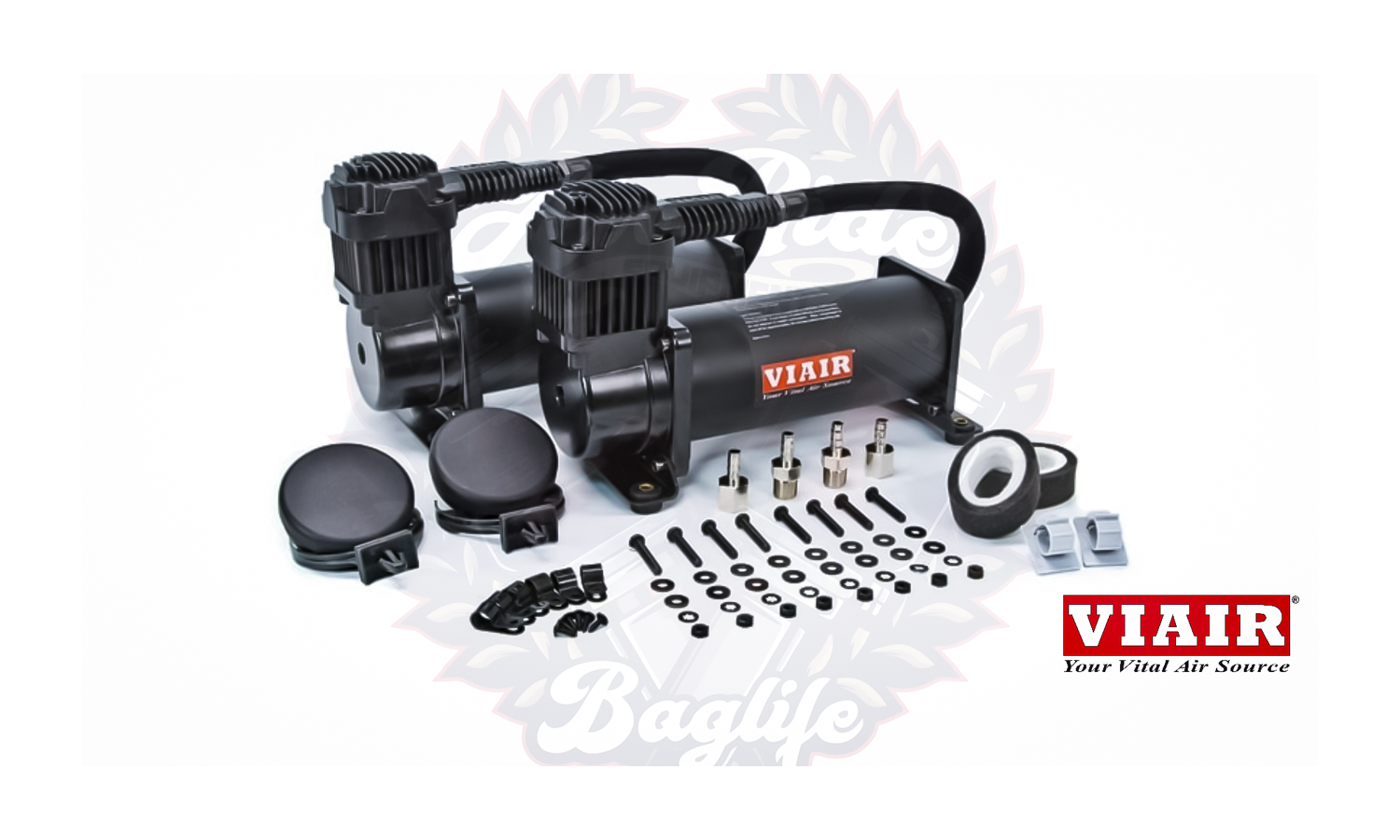

VIAIR’s 444 Dual Pack of air compressors feature a newly-developed head assembly, with a patent pending intercooler head, and is capable of a maximum 200 PSI with a 100% duty cycle to power an air suspension system or any other application you may have. The 444 Dual Pack includes two 12-volt Chrome or Stealth Black VIAIR 444 air compressors, which are also equipped with a stainless steel braided leader hose with an inline check valve.
**This is the primary compressor model we use on our over 1500 installations here at Air Ride Equipment.
Additional Info Download:
FEATURES |
---|
– (2) 444 (Chrome or Stealth Black) Air Compressors w/Thermal Overload Protectors |
– Intercooler Head (Patents Pending) |
– (2) Air Filter Assemblies |
– (2) Remote Mount Brackets |
– (2) Sets of Remote Mount Fittings |
– (2) Sets of Spare Air Filter Elements |
– (8) Sets of Nuts, Bolts, Washers and Lock Washers |
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
– (6) Airline Clips with Included Hardware |
– |
SPECIFICATIONS |
---|
– 12-Volt |
– Permanent Magnetic Motor |
– Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) |
– Max. Working Pressure: 200 PSI |
– Max. Air Tank Size: 10.0 Gallon |
– Combined Max. Amp Draw: 46-Amps |
– Ingress Protection Rating: IP67 |
– Max Ambient Temp: +158°F |
– Min Ambient Temp: -40°F |
– Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit) |
– Net Weight: 21.60 lbs. |
Please Note: Use thread sealant for proper installation. Thread tape is not recommended.
Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.
PERFORMANCE DATA
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 3.53 | 25 | 0 | 100.0 | 25 |
10 | 3.25 | 27 | 1.0 | 88.5 | 29 |
20 | 2.97 | 31 | 2.0 | 81.3 | 33 |
30 | 2.86 | 33 | 3.0 | 75.6 | 34 |
40 | 2.72 | 34 | 4.0 | 70.6 | 36 |
50 | 2.58 | 35 | 5.0 | 65.5 | 37 |
60 | 2.47 | 36 | 6.0 | 59.0 | 39 |
70 | 2.35 | 37 | 7.0 | 53.1 | 40 |
80 | 2.19 | 38 | 8.0 | 47.7 | 39 |
90 | 2.03 | 39 | 9.0 | 43.2 | 39 |
100 | 1.90 | 40 | 10.0 | 38.8 | 38 |
110 | 1.74 | 40 | 11.0 | 34.7 | 37 |
120 | 1.65 | 39 | 12.0 | 30.6 | 36 |
130 | 1.53 | 39 | 13.0 | 25.8 | 34 |
140 | 1.41 | 38 | 14.0 | 23.8 | 33 |
150 | 1.32 | 38 | |||
160 | 1.22 | 37 | |||
170 | 1.13 | 36 | |||
180 | 1.00 | 35 | |||
190 | 0.89 | 34 | |||
200 | 0.85 | 33 |
* Supply Voltage: 13.8 Volts
FILL RATES
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 200 PSI | 2 min. 30 sec. (± 10 sec.) |
165 to 200 PSI | 46 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 200 PSI | 5 min. 30 sec. (± 10 sec.) |
165 to 200 PSI | 1 min. 35 sec. (± 05 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
