If you are looking for a 100% Complete Bolt-On Air Suspension Kit for your Tesla Model 3 or Tesla Model Y look no further, this is the Kit for you!
This Kit Fits All Tesla Model 3 & Model Y (All Trim Packages, All Body Styles)
Includes the All New 1/4″ Airlift Performance ALP4 Digital Touchscreen Management, a Dual Pack of Viair 444 Compressors along with a 4 Gallon Aluminum Tank, Air Bags, Brackets, and All Air Lines, Wire Harnesses & Fittings.
*All the Expensive OEM Adaptive Suspension Remains Fully Functional with this System.
This is the EXACT SAME KIT ON ALL THE TESLAS Bagged Here at Our Shop in So Cal and West Coast Customs!!!
FREE SHIPPING!!!
Installation is Also Available and EVERY INSTALLATION WE DO COMES WITH THE INDUSTRY’S LEADING LIFETIME WARRANTY ON ALL THE LABOR. No One Bags More Teslas Annually on Earth, No One.
Kit Fits All Tesla Model 3 & Model Y (All Trim Packages, All Body Styles)

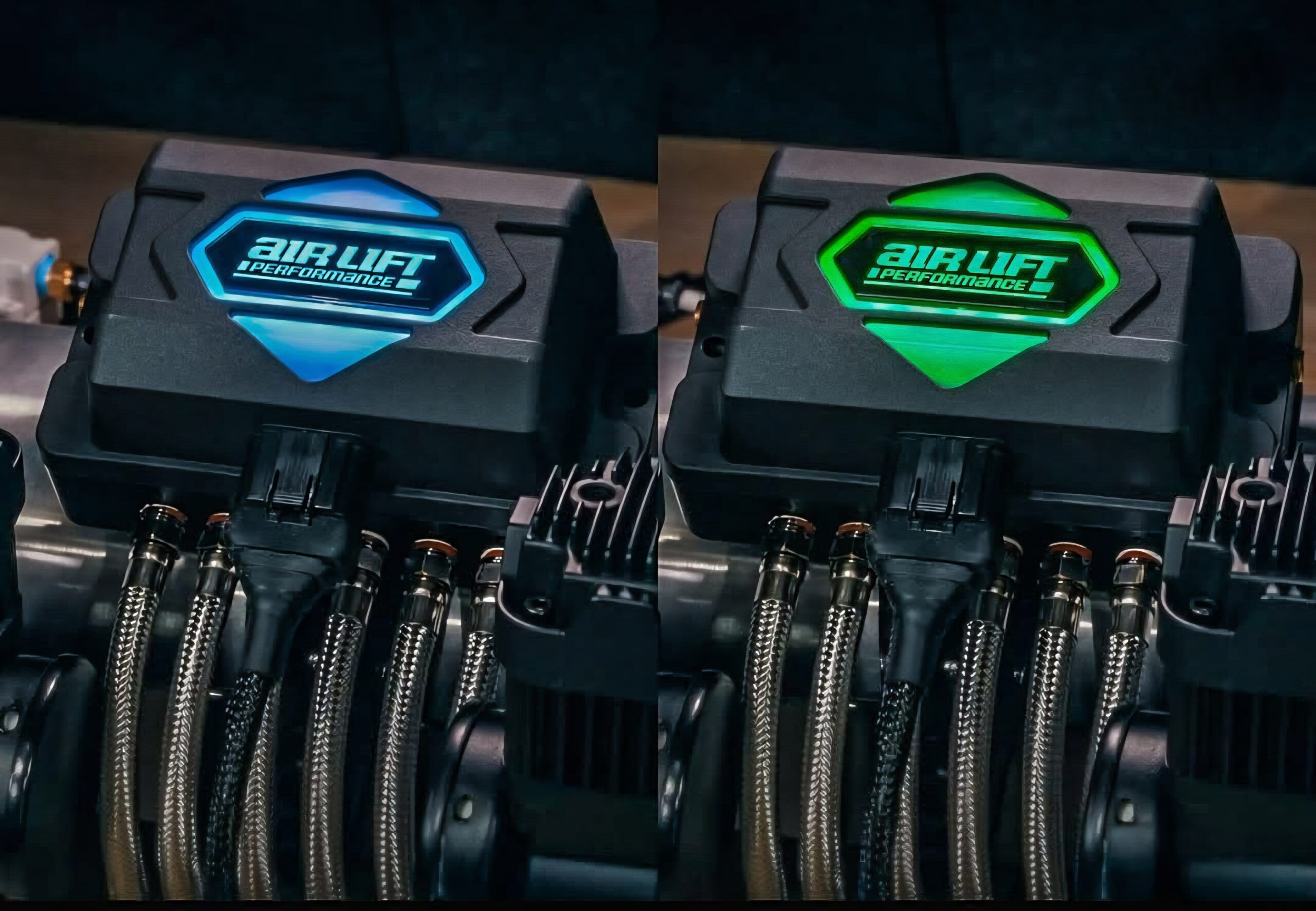

Airlift Performance ALP4 Management
- The 1/4″ ALP4 Air Management System redefines what’s possible for air suspension control, combining cutting-edge hardware with smarter, more seamless functionality.
- The anodized black billet aluminum manifold is designed for durability and sleek aesthetics with a customizable LED-lit top cover.
- Your touch screen controller provides built-in diagnostics with clear, user friendly messaging, and the mobile app gives you compatibility for remote adjustments and system tuning.
- Easy to Install
AIR BAGS
- Aerosport Front
- Bolt in Front Bag Brackets
- Air House 1 Rear
- Bolt in Rear Brackets
- Front Aerosport Bags 4″ – 9.5″
- Rear Air House 1 Bags 2″ – 7″
BLACK ALUMINUM TANK
- Aluminum Construction for no rust inside your air system!
- 7″ x 24″
- 2 3/8″ NPT Ports on each end cap, 1/4″ NPT on the bottom for a drain and 1/4″ NPT on side for Side Drain
- Features a Seamless belly for your higher operating pressures.
CHROME ALUMINUM TANK
- (2) 1/4″ End Ports
- (2) 3/8″ End Ports
- (1) 1/4″ Drain Port
- 200 PSI Maximum Working Pressure
- Polished Aluminum Tank

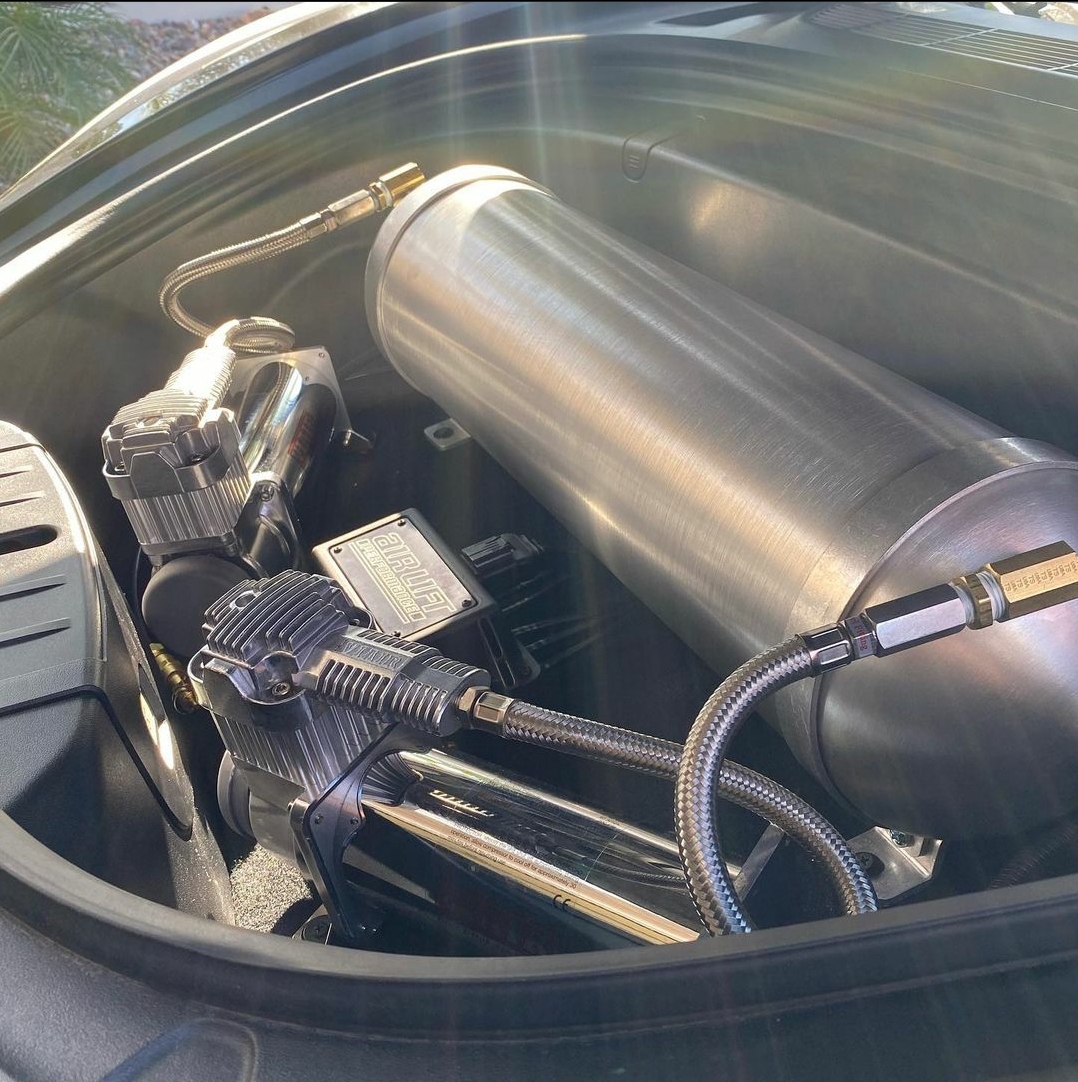

VIAIR 444 DUAL COMPRESSORS
- VIAIR’s 444 Dual Pack of air compressors feature a newly-developed head assembly, with a patent pending intercooler head, and is capable of a maximum 200 PSI with a 100% duty cycle to power an air suspension system or any other application you may have. The 444 Dual Pack includes two 12-volt Chrome or Stealth Black VIAIR 444 air compressors, which are also equipped with a stainless steel braided leader hose with an inline check valve.
- This is the primary compressor model we use on our over 1500 installations here at Air Ride Equipment.
Additional Info Download:
| FEATURES |
|---|
| – (2) 444 (Chrome or Stealth Black) Air Compressors w/Thermal Overload Protectors |
| – Intercooler Head (Patents Pending) |
| – (2) Air Filter Assemblies |
| – (2) Remote Mount Brackets |
| – (2) Sets of Remote Mount Fittings |
| – (2) Sets of Spare Air Filter Elements |
| – (8) Sets of Nuts, Bolts, Washers and Lock Washers |
| – (2) Stainless Steel Braided Leader Hoses with Inline Check Valve |
| – (6) Airline Clips with Included Hardware |
| – |
| SPECIFICATIONS |
|---|
| – 12-Volt |
| – Permanent Magnetic Motor |
| – Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI) |
| – Max. Working Pressure: 200 PSI |
| – Max. Air Tank Size: 10.0 Gallon |
| – Combined Max. Amp Draw: 46-Amps |
| – Ingress Protection Rating: IP67 |
| – Max Ambient Temp: +158°F |
| – Min Ambient Temp: -40°F |
| – Dimensions: 10.87″L x 4.2″W x 7.06″H (Each Unit) |
| – Net Weight: 21.60 lbs. |
FILL RATES
| 2.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 200 PSI | 2 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI | 46 sec. (± 05 sec.) |
| 5.0 GALLON TANK | FILL RATE |
| 0 to 200 PSI | 5 min. 30 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 35 sec. (± 05 sec.) |
* Due to redundant restrictions added to apparatus, for flow rate testing, actual flow rate at 0 psi may vary.
